Introduction

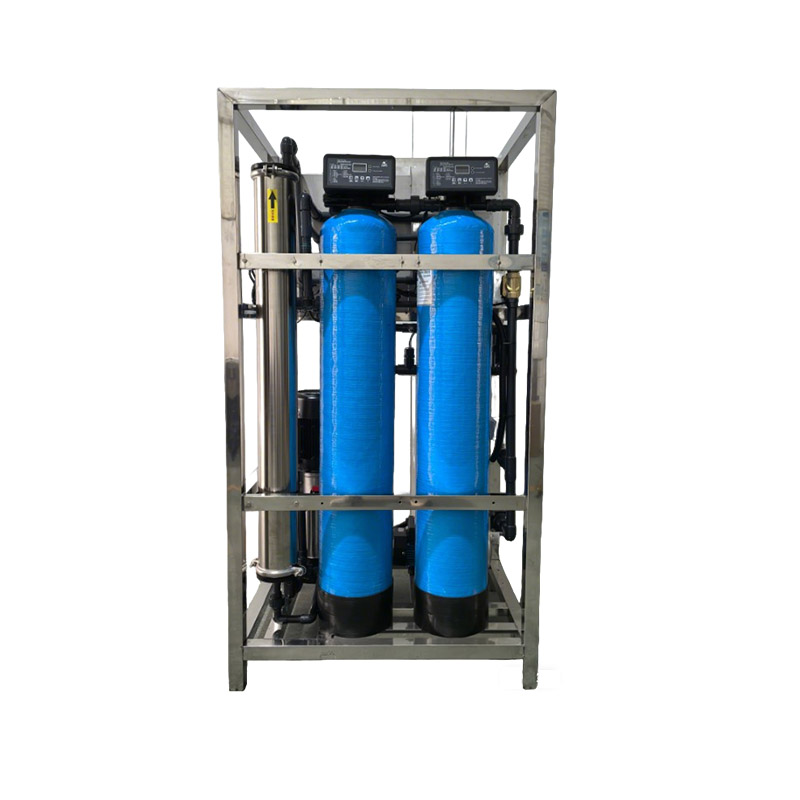

F2-0.25/0.5T RO Reverse Osmosis Water Purifier
All-in-one integrated solution for small and medium water demands.

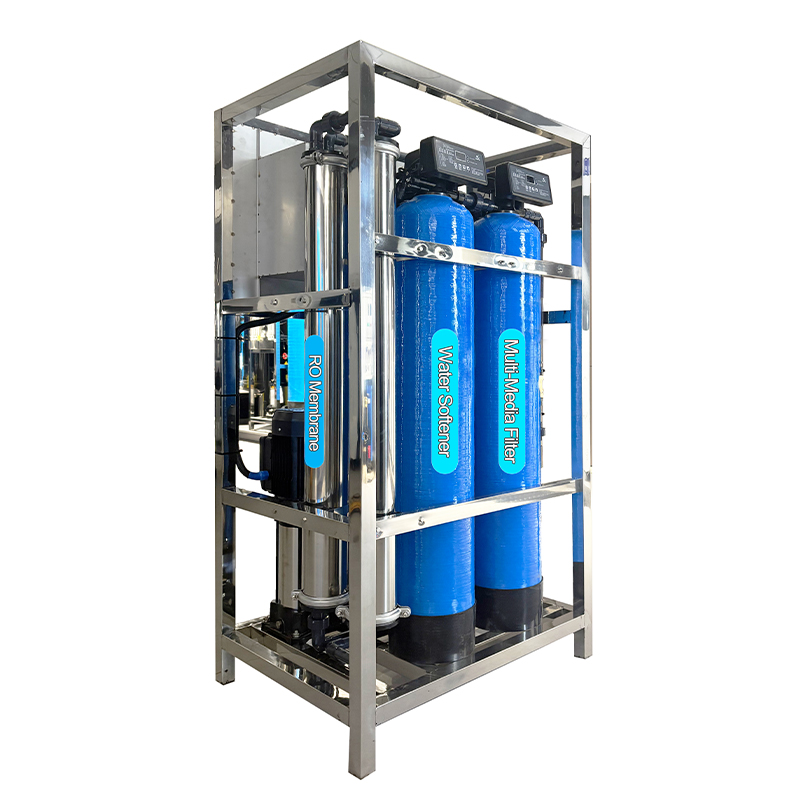

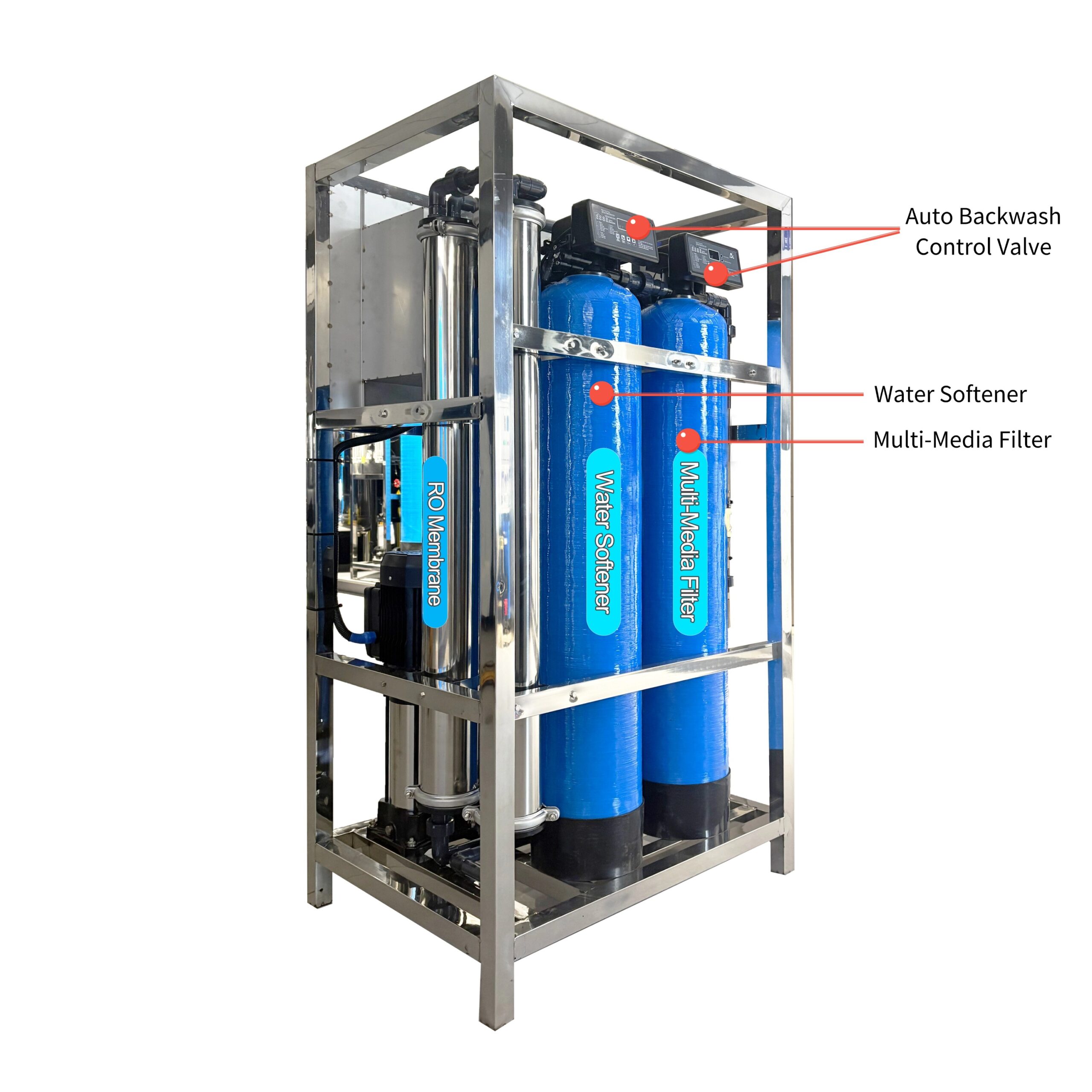

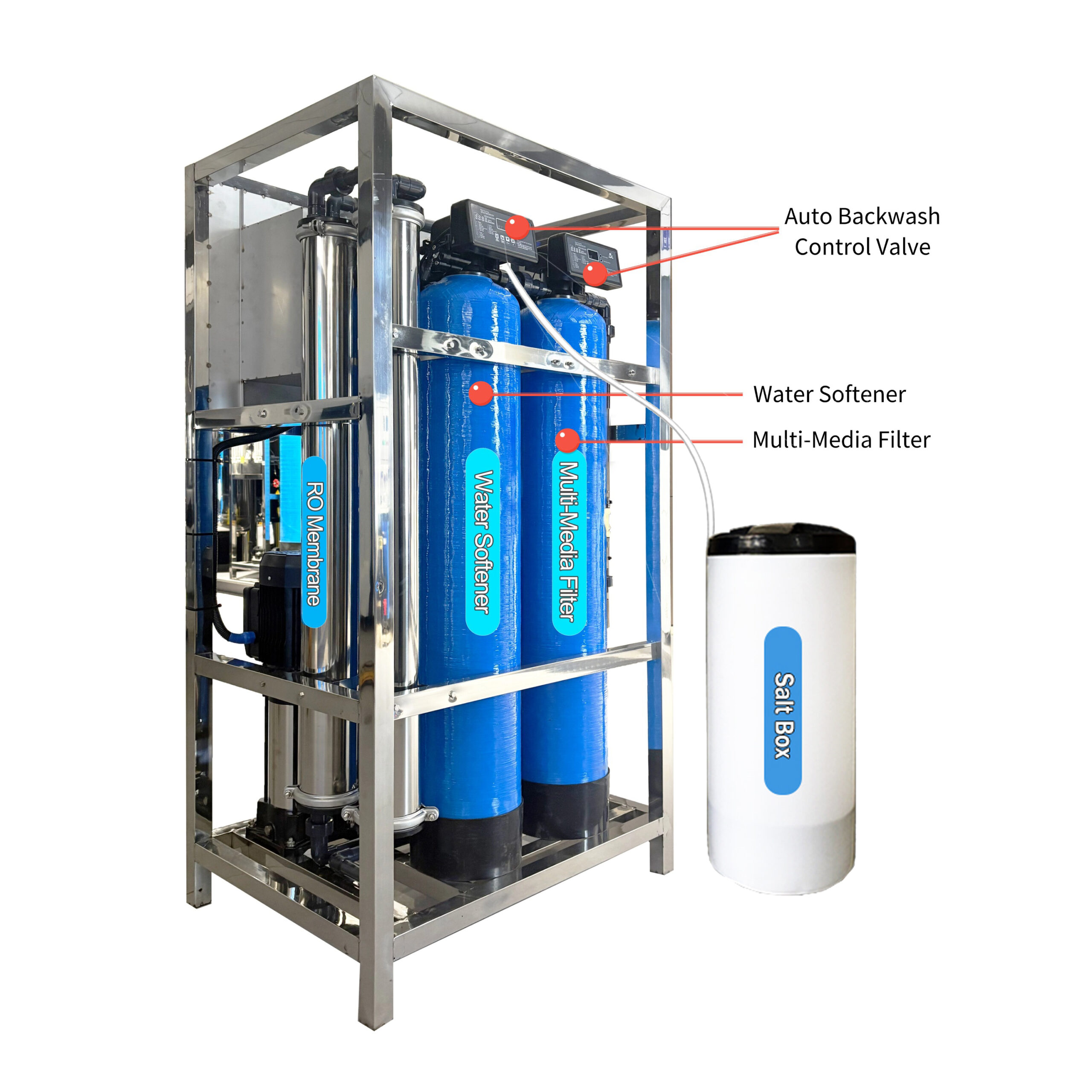

Equipped with full-process filtration: PP, quartz sand, activated carbon, softener and RO system.
Effectively removes sediment, residual chlorine, heavy metals, bacteria and impurities.
Intelligent low-pressure protection, stable constant flow & pressure operation.
Salt rejection ≥99%, removes over 97% TDS and 99% colloidal organics.
Easy installation, simple maintenance and standardized filters.
Stably produces high-quality pure water for multiple applications, ensuring full water safety.
Application
Small offices, maker spaces; providing direct drinking pure water for employees, suitable for daily drinking, tea brewing and other needs
Small community convenience stores, small restaurants; meeting the basic water purification needs for beverage production, food cleaning, etc.
Single-family houses, villas, large family households; realizing whole-house water purification, suitable for drinking, washing, kitchen cooking and other multi-scenario water use
Feature
Integrating core components of filtration, softening and purification in one, no additional equipment is needed. Raw water can complete multi-stage purification through a single device, reducing installation space and supporting costs.
250/500L/h dual flow options, matching water needs of different scales.
The RO membrane has a desalination rate of ≥99%. Cooperating with quartz sand, activated carbon, PP cotton and other components, it removes all kinds of impurities in an all-round way, and the produced water meets the high-quality drinking standard.
The filter element and accessories adopt standardized design with simple replacement operation. Only municipal tap water is needed as raw water, which is suitable for most urban water use environments with low installation and use thresholds.
Our Advantage
With 12 years of dedication to water treatment equipment and system services, we’ve amassed extensive experience in OEM and ODM customization, precisely meeting diverse customer needs.
Our business covers the entire process from design to sales, offering one – stop solutions, saving customers’ time and cost, bringing them convenience and peace of mind.
Thanks to advanced technologies and craftsmanship, our products feature superior quality and are widely used in various industries, meeting the stringent water quality requirements of each industry.
Upholding the concepts of quality – centered and after – sales – oriented, we strictly control product quality and provide comprehensive after – sales service, leaving customers with no worries.
Specification
| Model | F2-0.25T | F2-0.5T |
| Pure Water Flow Rate | 250 L/h | 500 L/h |
| Recovery | Up to 60% | Up to 60% |

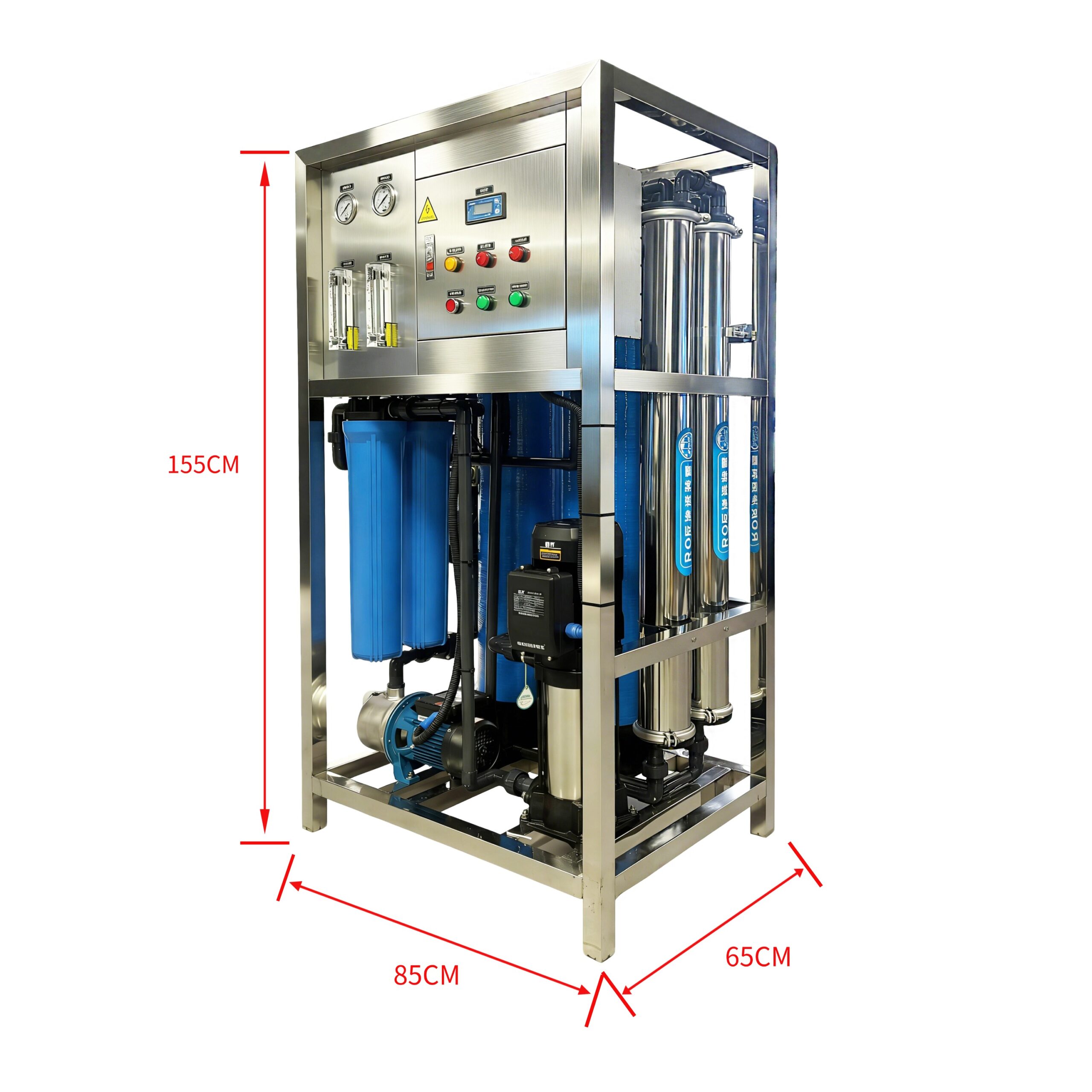

| Net Dimensions (L×W×H, cm) | 80×60×150cm | 85×60×150cm |
| Product packaging dimensions | 190cm*85cm*65cm | 190cm*90cm*65cm |
| Product weight (kg) | 124KG | 132KG |
| Product packaging weight (kg) | 150KG | 190Kg |
| Applicable Feed Water Quality | TDS≤1500ppm | TDS≤1500ppm |
| Produced Water Quality | Drinking water standard | Drinking water standard |
| Inlet Pressure | 0.25-0.45MPa | 0.25-0.45MPa |
| Operating Pressure | 0.7-0.9MPa | 0.7-0.9MPa |
| Rated Power | 1.5KW | 1.9KW |
| Rated Voltage | AC220V/50Hz | AC220V/50Hz |
| Filtration Stages | 4-stage | 4-stage |
| Filtration Process | Multi-media filter (200×100mm) Softening filter (200×100mm) 2 × 20″ PP cotton filters 1 × 4040 RO membrane | Multi-media filter (200×100mm) Softening filter (200×100mm) 2 × 20″ PP cotton filters 2 × 4040 RO membrane |
| Piping Material | U-PVC | U-PVC |
| Electrical Components | Delixi series | Delixi series |
| Feed Water Pump | LINGXIAO BJZ037 | LINGXIAO BJZ037 |
| High-Pressure Pump | （SHIMGE）PLD2-7 | （SHIMGE）PLD2-8 |
| Feed Water Inlet | ¾” male thread (De25) | ¾” male thread (De25) |
| Permeate Outlet | ½” male thread (De20) | ¾” male thread (De25) |
| Concentrate Outlet | ½” male thread (De20) | ¾” male thread (De25) |
| Leakage Protection Switch | 32A/3P+N | 32A/3P+N |
