Background: Core Pain Points of Water Use in American Villas
Most villas in the U.S. (especially suburban detached villas) face complex water quality issues, which seriously affect living experience and equipment lifespan:
- Severe hard water problem: High calcium and magnesium ion content (hardness 10-20 grains/gallon), leading to faucet scaling, 30% reduction in water heater efficiency, stiff clothes after washing, and dry, itchy skin
- Secondary pollution risk: Sediment, rust, and bacteria (such as Legionella) mix into water due to old water supply pipelines, posing safety hazards to drinking water
- Diverse water use scenarios: Need to meet all scenario needs such as kitchen direct drinking, bathroom washing, pool water replenishment, lawn irrigation, and washing machine water use. Traditional single equipment is difficult to cover.
“We have to replace the water heater almost every year because of severe scaling. Moreover, our children always complain about itchy skin after bathing, and we don’t dare to drink tap water directly,” said a villa owner in Orange County, California. “We need a one-stop solution that can solve all water problems, instead of installing multiple devices separately.”
Core Challenges
- Solve the hard water problem, reduce water hardness to below 1 grain/gallon, protect home appliances and improve living experience
- Deeply purify drinking water, remove bacteria, viruses, heavy metals (lead, mercury), residual chlorine and other pollutants, meeting NSF/ANSI 42/53 standards
- Adapt to the high-flow water demand of villas (daily water consumption 300-500 gallons), ensuring stable water pressure when multiple faucets are used simultaneously
- Flexible installation, no excessive space occupation, adapting to different layouts such as villa basements and equipment rooms
- Low energy consumption and low maintenance, in line with American energy conservation and environmental protection concepts
Our Solution: Whole-House Integrated Water Supply System with Water Softener + UF
Based on NSF-certified technology and experience in adapting to American villa water use scenarios, we designed a two-in-one one-stop solution of water softener + UF ultrafiltration, integrating intelligent water softening system, ultrafiltration deep purification system, and stable pressure water supply module to achieve dual protection of “whole-house soft water + direct drinking purified water”:

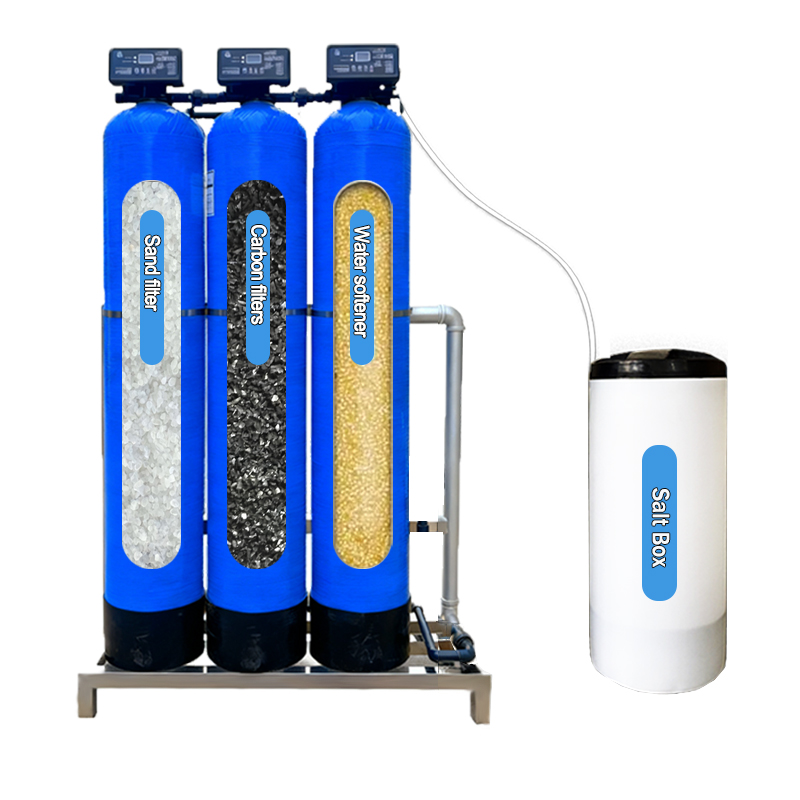

1.Intelligent Water Softener System (Solve Hard Water Pain Points)
| Equipment Name | Model | Core Specifications | Function Description |
| Intelligent Water Softener | ZH-Soft-600 | Flow rate 10 GPM, resin capacity 1.5 cubic feet, regeneration cycle 7-14 days (automatic induction) | Adopt ion exchange technology to reduce hardness from 20 grains/gallon to ≤1 grain/gallon; automatic regeneration without manual operation |
| Pre-Filter | ZH-Pre-10 | Precision 5μm, working pressure 20-125 psi, material 316L stainless steel | Remove large particles such as sediment and rust, protect water softener and ultrafiltration membrane, and extend equipment lifespan |
| Salt Tank | ZH-Salt-Tank-200 | Capacity 200 lbs, food-grade PE material, with low salt alarm function | Store regeneration salt, automatically remind to replenish when salt is low, ensuring continuous and stable water softening effect |
2.UF Ultrafiltration Deep Purification System (Ensure Direct Drinking Safety)
| Equipment Name | Model | Core Specifications | Function Description |
| UF Membrane Module | ZH-UF-800 | Membrane pore size 0.01μm, filtration precision 99.99%, flow rate 8 GPM | Remove bacteria, viruses, suspended solids, and colloids, retain beneficial minerals, meeting NSF/ANSI 53 standards |
| Activated Carbon Filter | ZH-AC-50 | Coconut shell activated carbon, iodine value ≥1000 mg/g, service life 12 months | Adsorb residual chlorine, odors, and organic matter, improve water taste, meeting NSF/ANSI 42 standards |
| Direct Drinking Faucet | ZH-Faucet-01 | 304 stainless steel material, hot and cold dual control, food-grade seals | Installed in kitchen sink, providing instant purified drinking water, adapting to villa decoration style |
3.Whole-House Adaptable Auxiliary Design
Equipped with variable frequency booster pump (ZH-Pump-05, flow rate 12 GPM, head 50 ft), automatically adjust water pressure to ensure stable water flow when multiple water points are used simultaneously
Water softener and ultrafiltration system can be installed in stacks or side by side, covering only 4 sq. ft, adapting to narrow spaces such as basements and equipment rooms
Water softener regeneration water consumption is only 3 gallons/time, ultrafiltration system does not require electricity, annual power consumption ≤10 kWh, in line with ENERGY STAR concept
Project Results: Comprehensively Improve Villa Water Use Experience
1.Comprehensive Water Quality Compliance and Experience Upgrade
- Whole-house soft water: Hardness stable below 0.8 grain/gallon, no scaling on faucets and water heaters, home appliance lifespan extended by 50%; clothes are soft and smooth after washing, and skin itching problem is completely solved
- Direct drinking purified water: Bacteria and virus removal rate 99.99%, heavy metal content such as lead and mercury ≤0.001 mg/L, residual chlorine removal rate 100%, sweet taste, drinkable directly
2.Full-Scenario Coverage, Worry-Free Water Use
- Daily water supply capacity 500 gallons, meeting all scenario needs such as kitchen direct drinking, bathroom washing, pool water replenishment, and lawn irrigation. Water pressure does not decrease when multiple faucets are turned on simultaneously
3.Significant Cost Reduction
| Expense Item | Before Transformation | After Transformation | Reduction |
| Home Appliance Replacement Cost (Annual Average) | $800 (water heater, washing machine, etc.) | $400 | 50% |
| Detergent/Skincare Product Cost (Annual Average) | $300 | $180 | 40% |
| Bottled Water Cost (Annual Average) | $600 | $0 | 100% |
| Equipment Maintenance Cost (Annual Average) | $200 | $80 | 60% |
| Payback Period | – | 24 months | – |
Customer Testimonial
“This one-stop water supply system has completely changed our lives,” commented a California villa owner. “After the hard water problem was solved, the water heater has never scaled again, and our children’s skin is no longer sensitive. The direct drinking water in the kitchen tastes very good, and the whole family drinks it directly, saving the trouble and cost of buying bottled water. Maintenance is worry-free—only need to replace the filter once a year. This is one of the most worthwhile investments we have made for the villa.”
Why Choose Our Water Supply Solution for American Villas?
Water softener system + UF ultrafiltration, solving both hard water problems and drinking water safety, covering all water use scenarios
Meet NSF/ANSI 42/53 standards, all materials are food-grade, safe and reliable
High-flow design, adapting to high water demand of villas, flexible installation without occupying space
We specialize in providing customized whole-house water supply solutions for American villas and high-end residences. With NSF-certified technology, localized service teams and decades of industry experience, we create a healthy, comfortable and energy-saving water environment for you. Contact us now to get free water quality testing and customized quotes!
